This kit plus a GM 4 pin ignition module and a low ohm canister coil is all you need to convert your stock Chrysler electronic ignition to HEI and DITCH the BALLAST RESISTOR. this kit includes the following items.

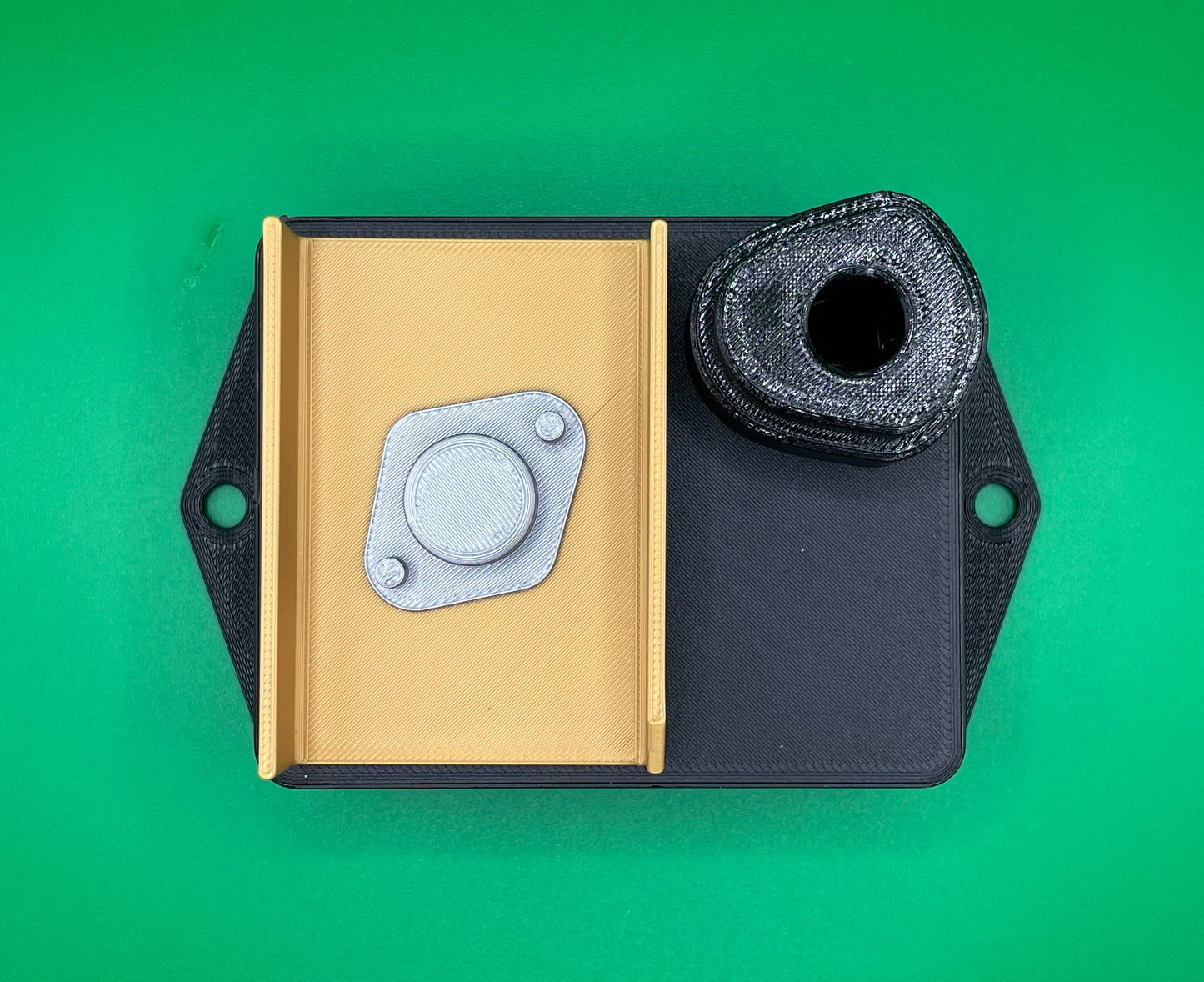

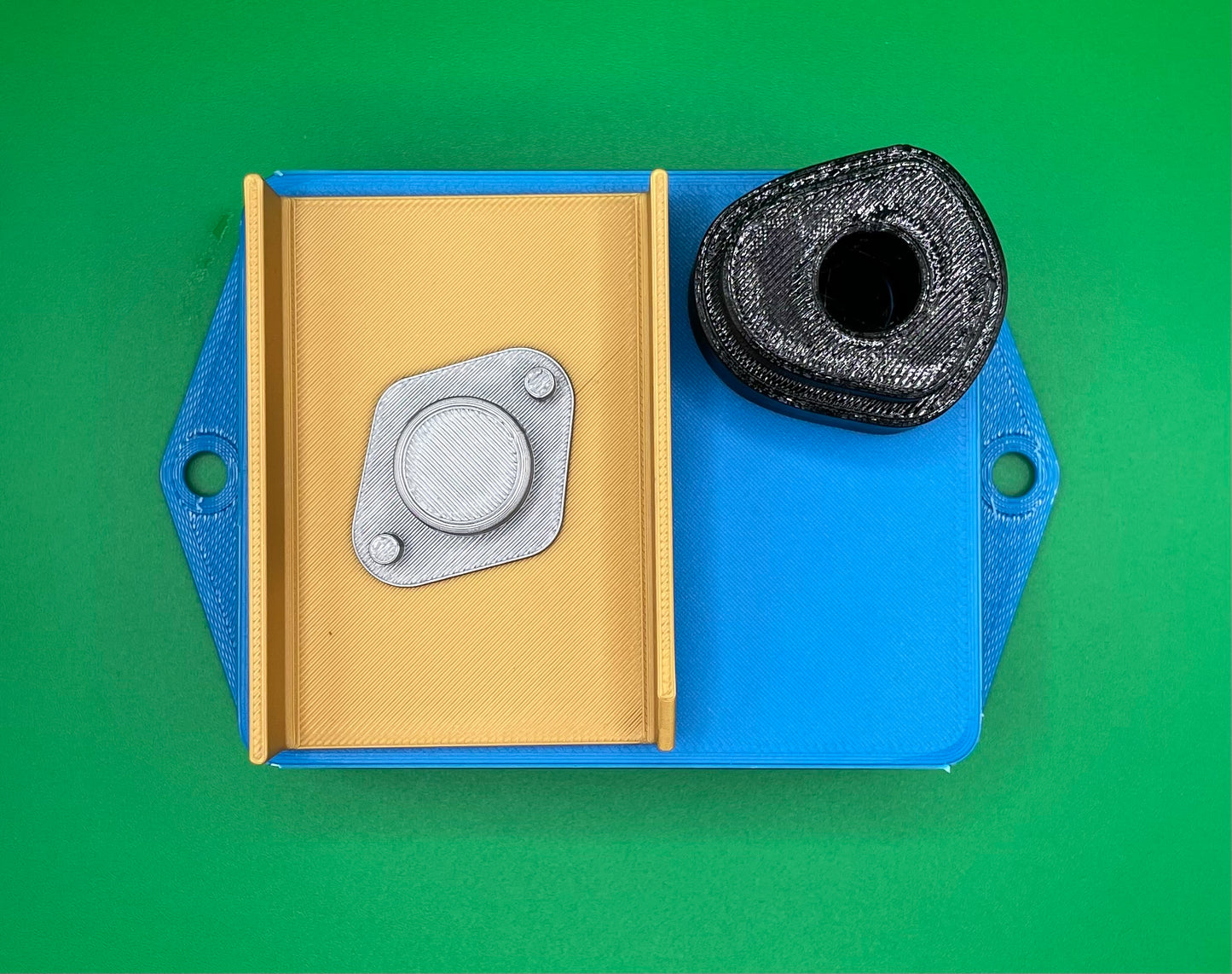

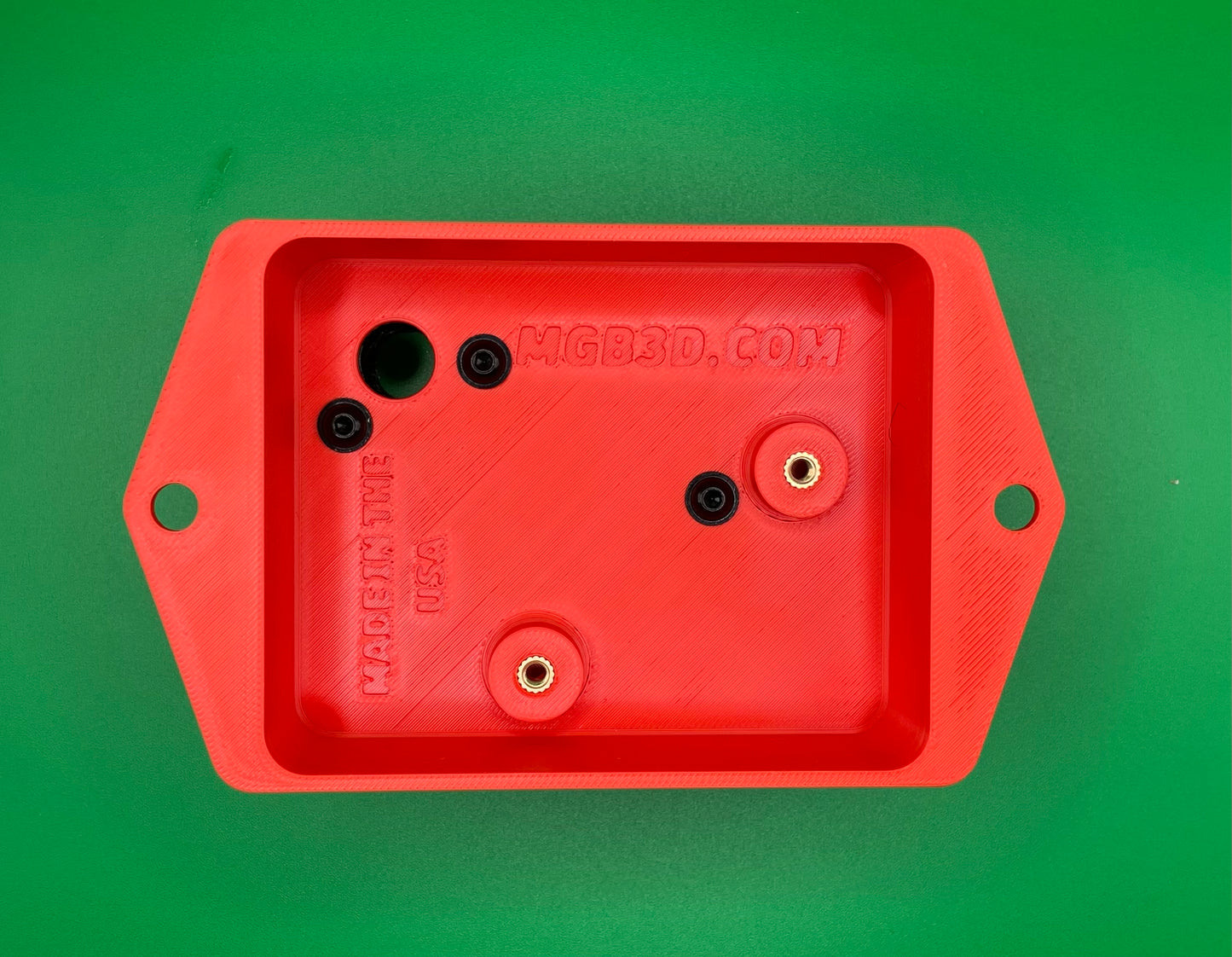

1x 3d printed ignition box with heat set inserts installed
3x m4x10 bolts
2x m4x25 bolts

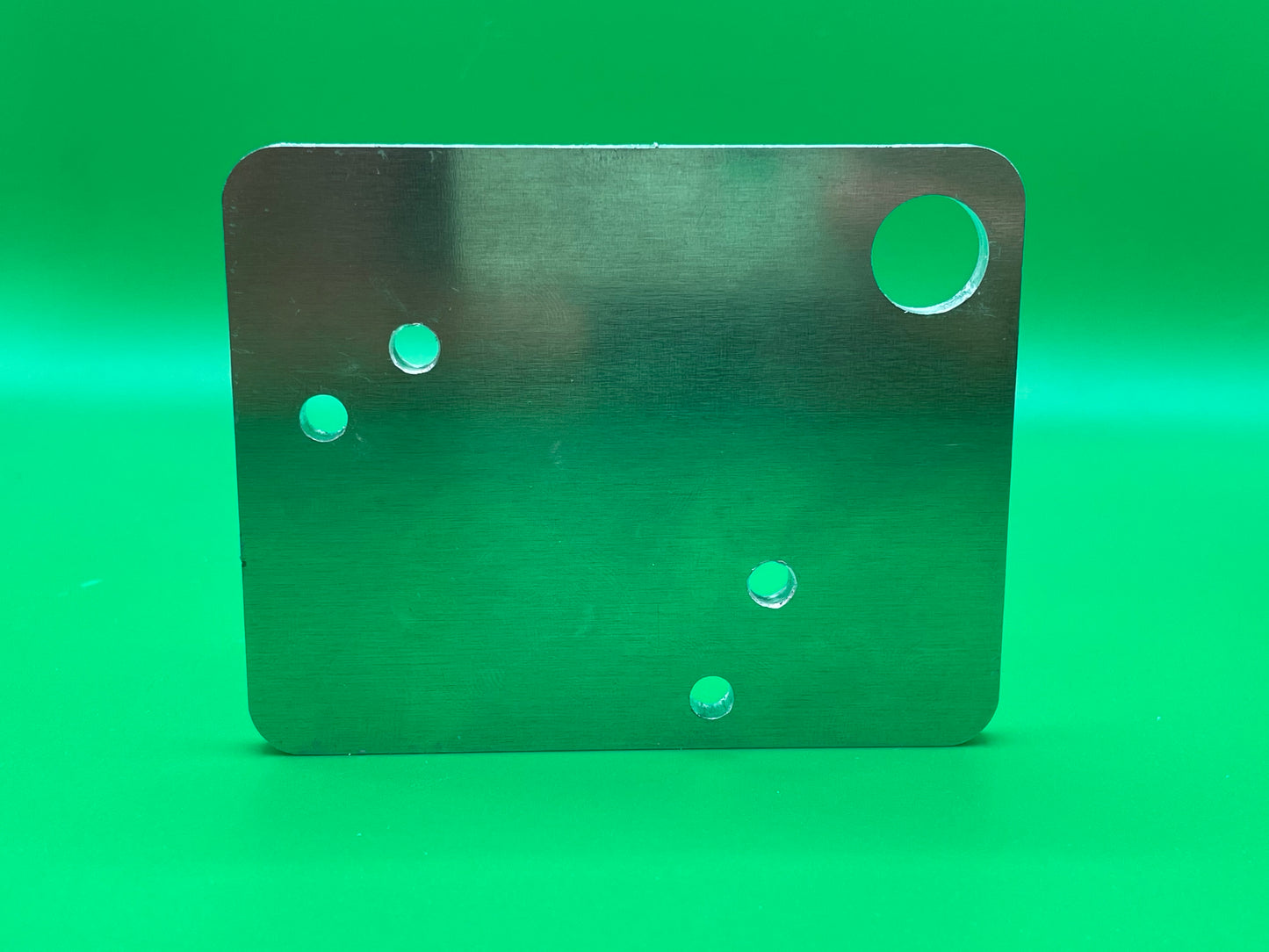

1x 3/8" thick laser cut 5052 aluminum heat sink.

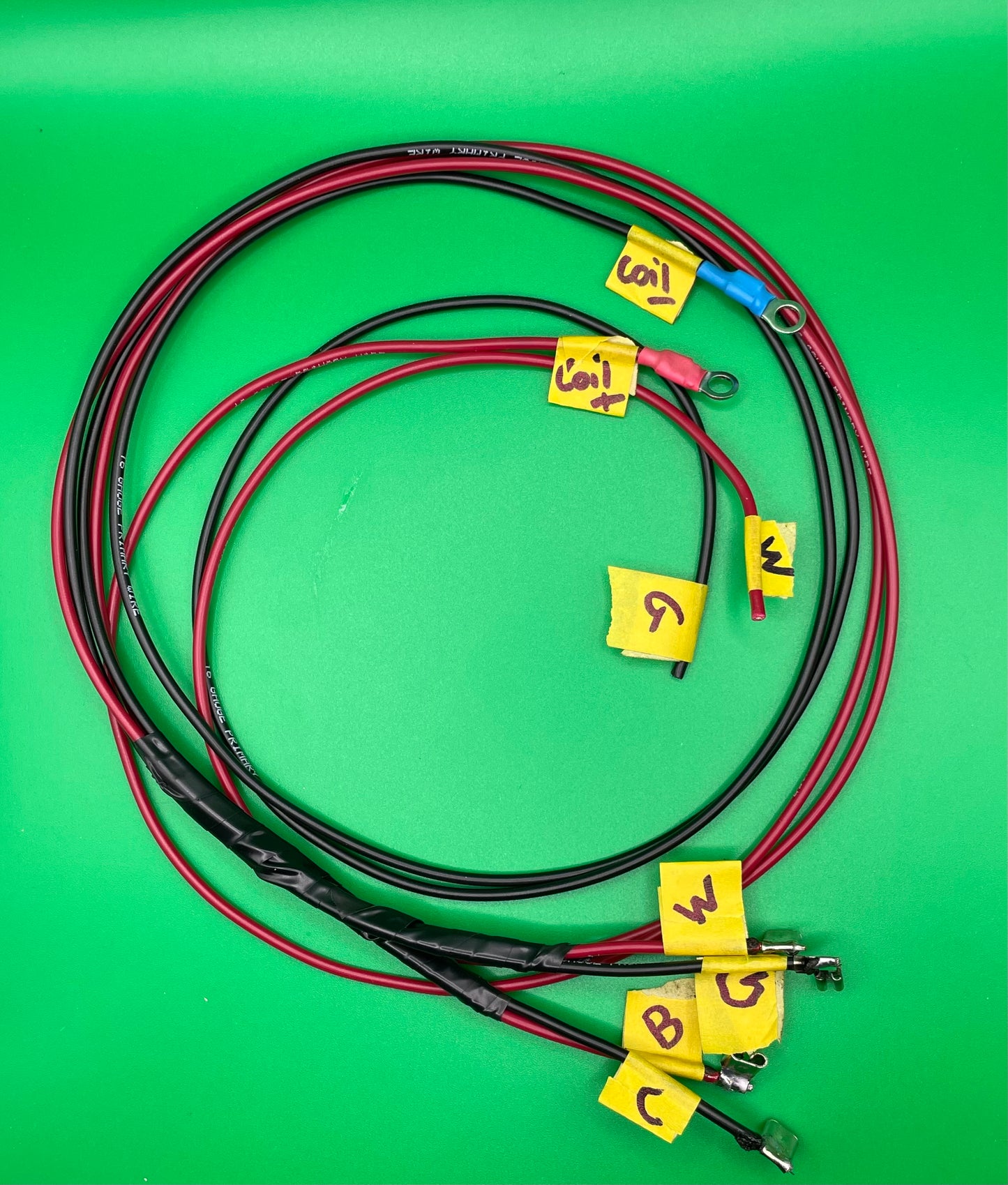

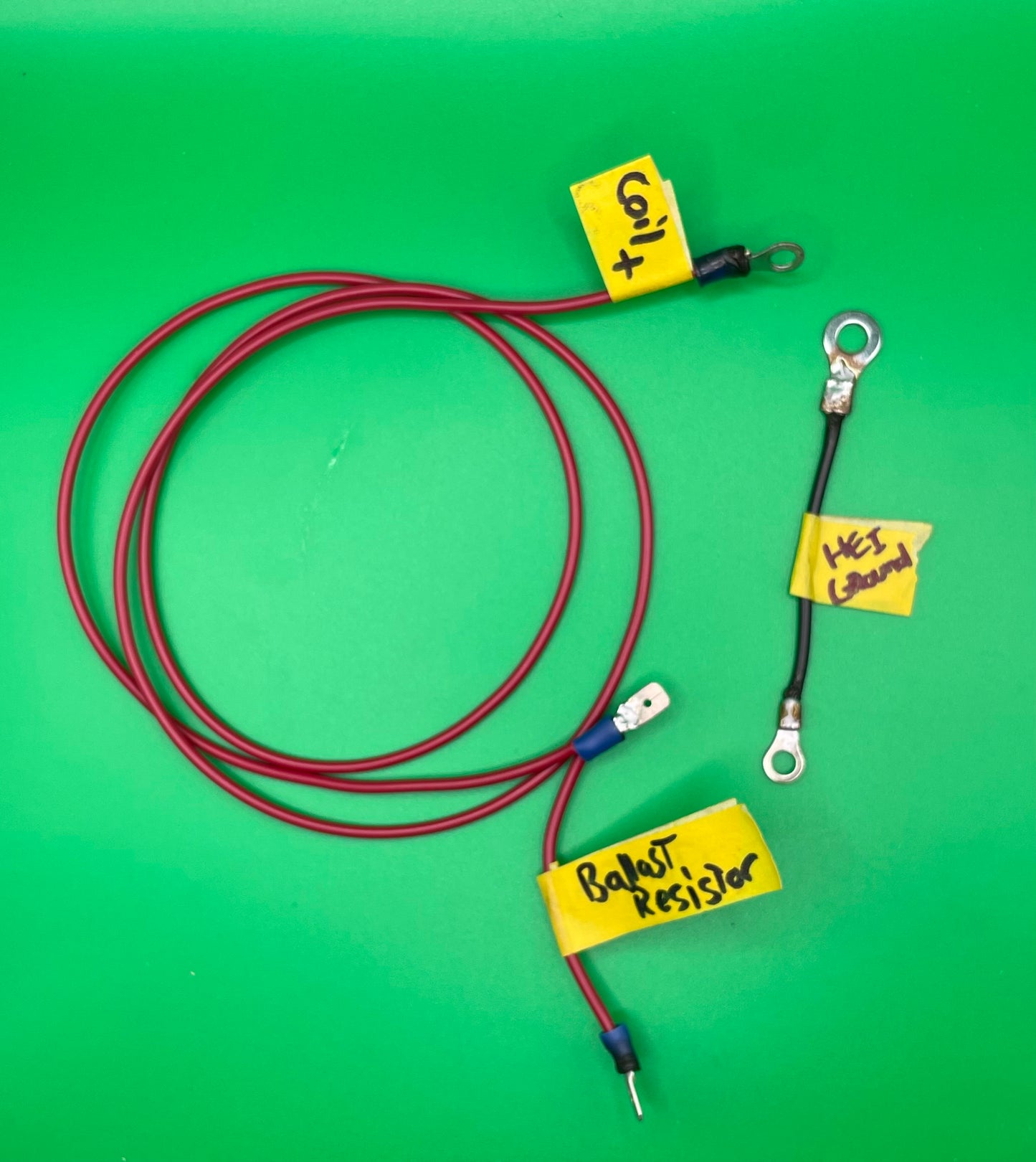

1x Wiring Harnes with soldered 90* flag terminals for module, and coil hookup. ground wire for HEI module and jumper wire for ballast also included. Factory length 36"

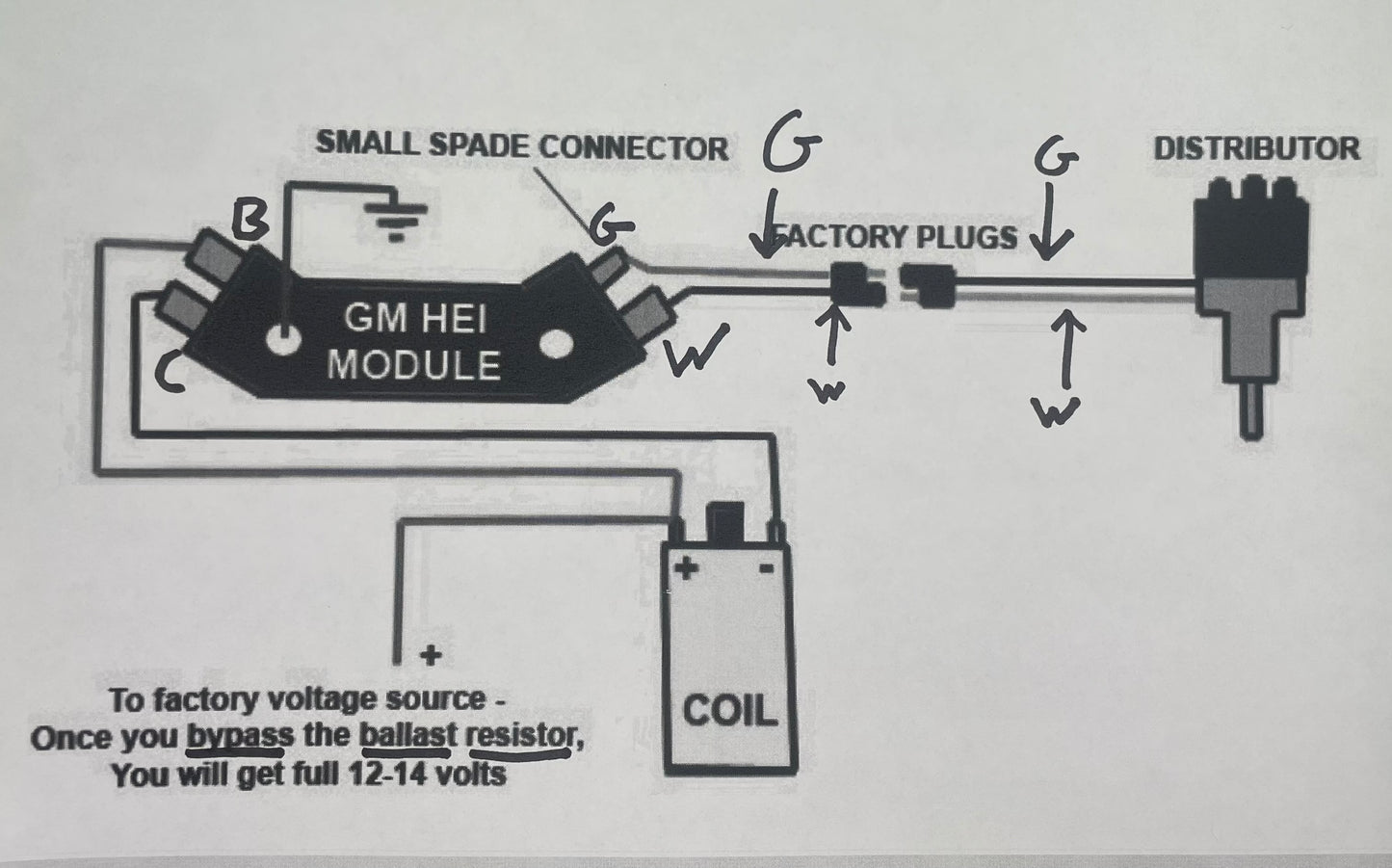

1x wiring diagram.

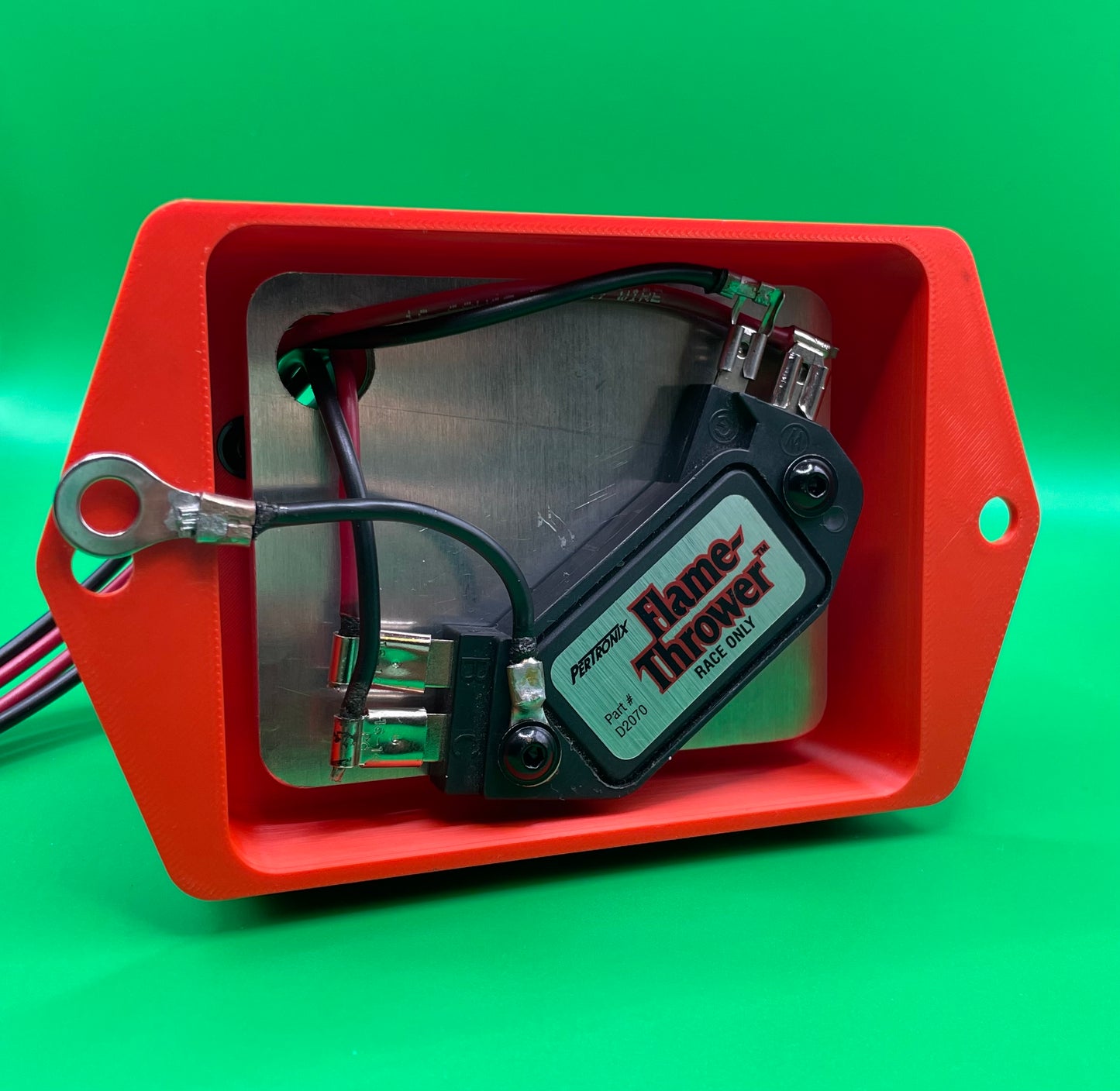

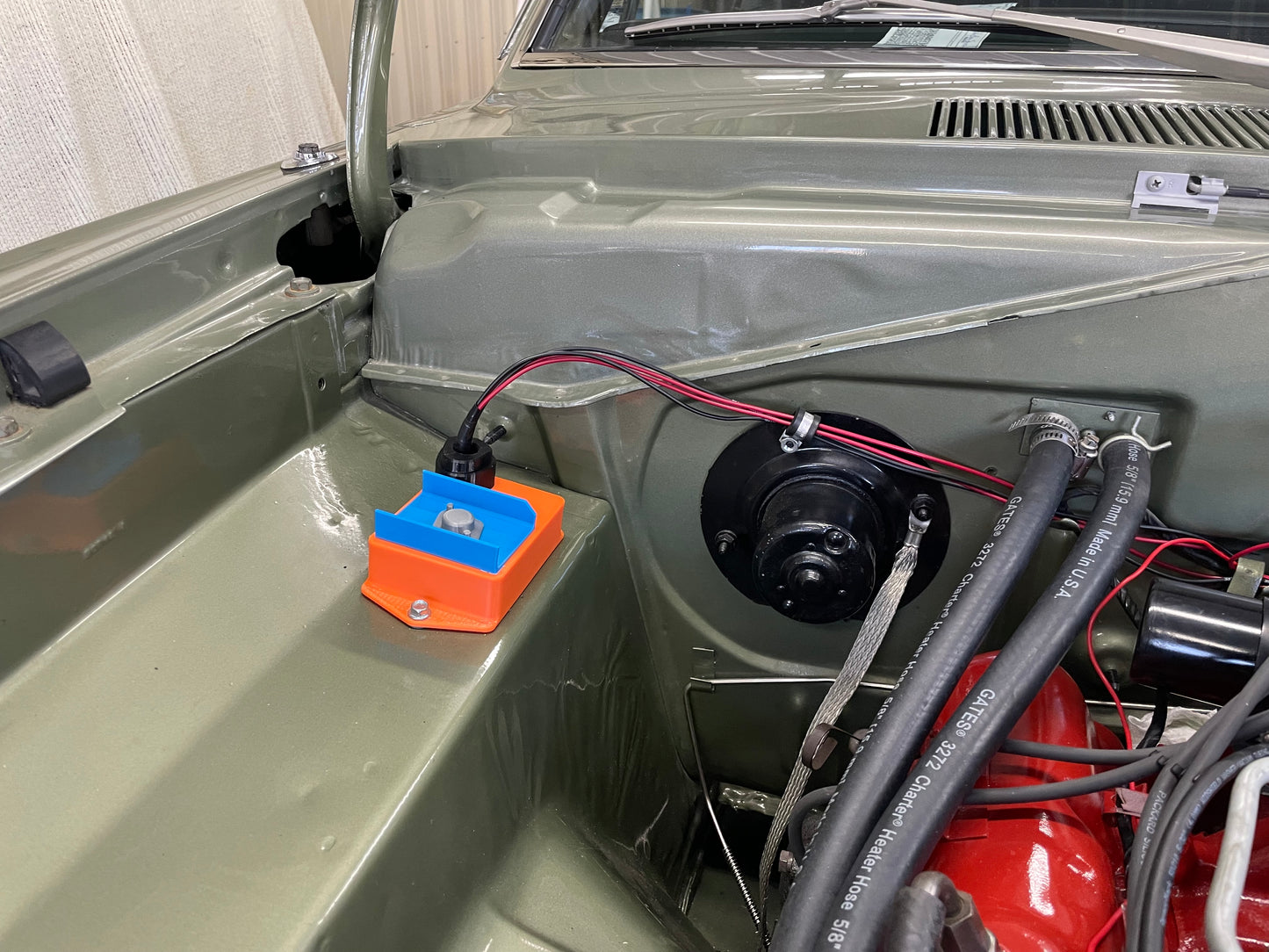

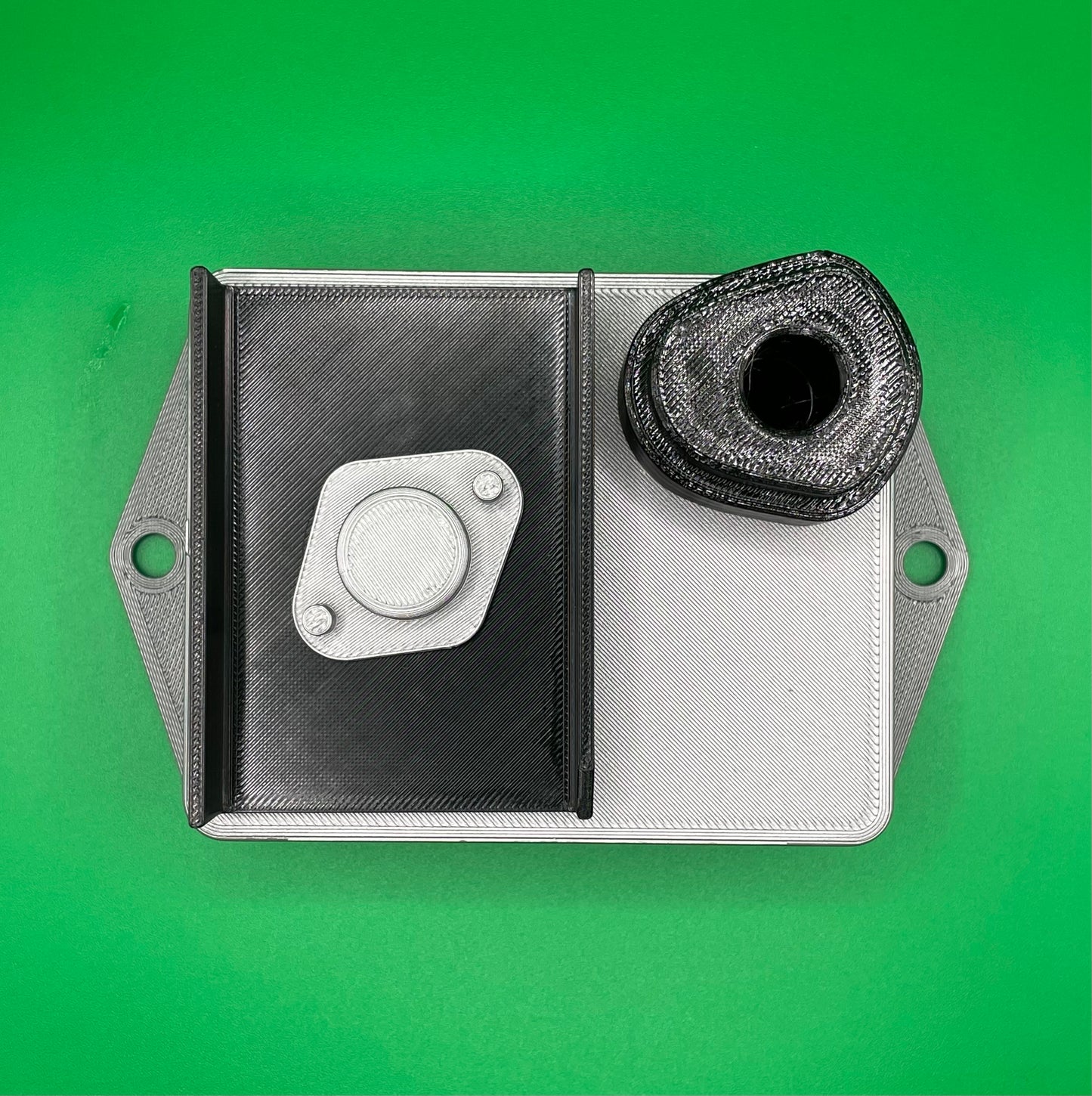

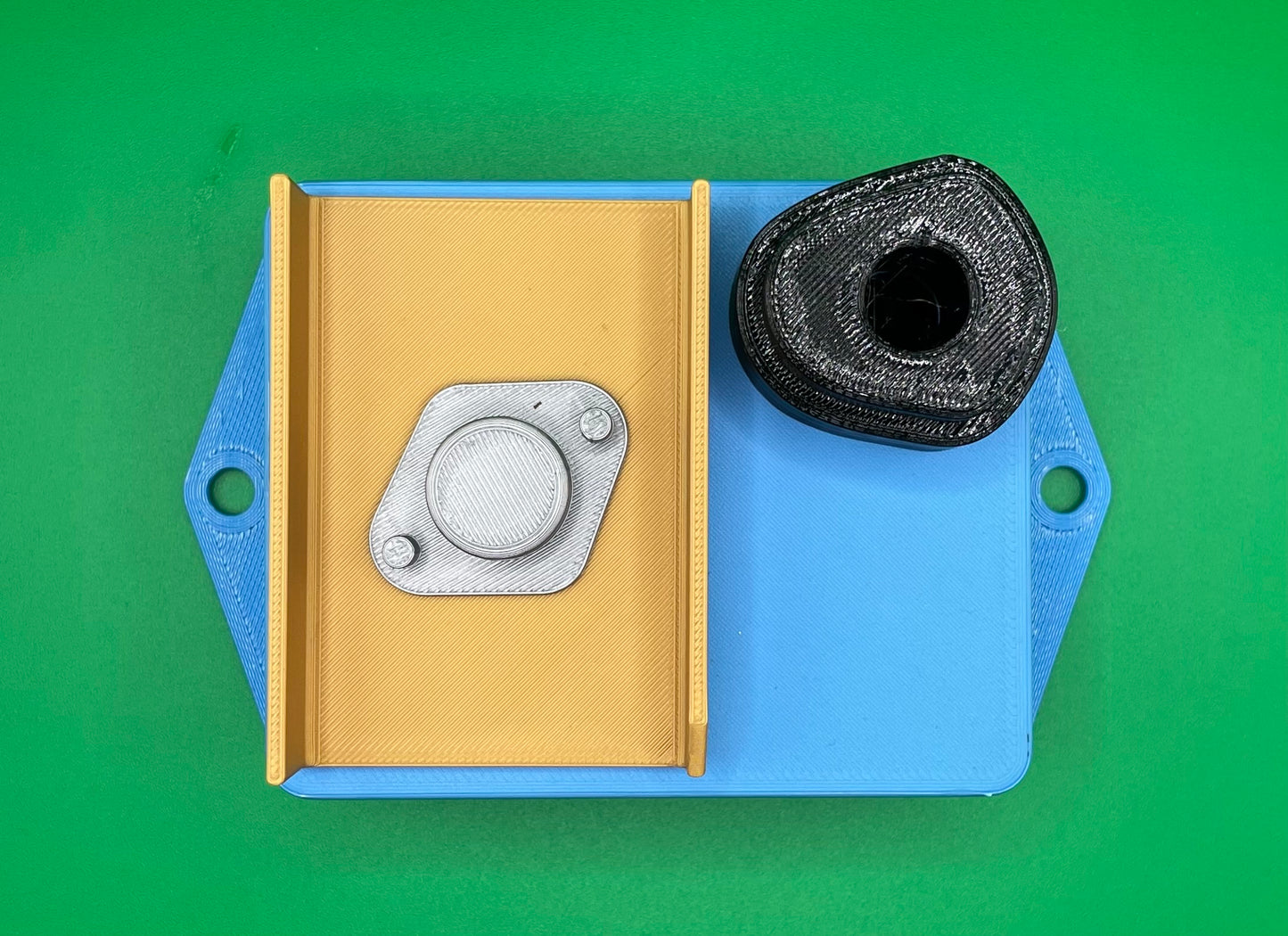

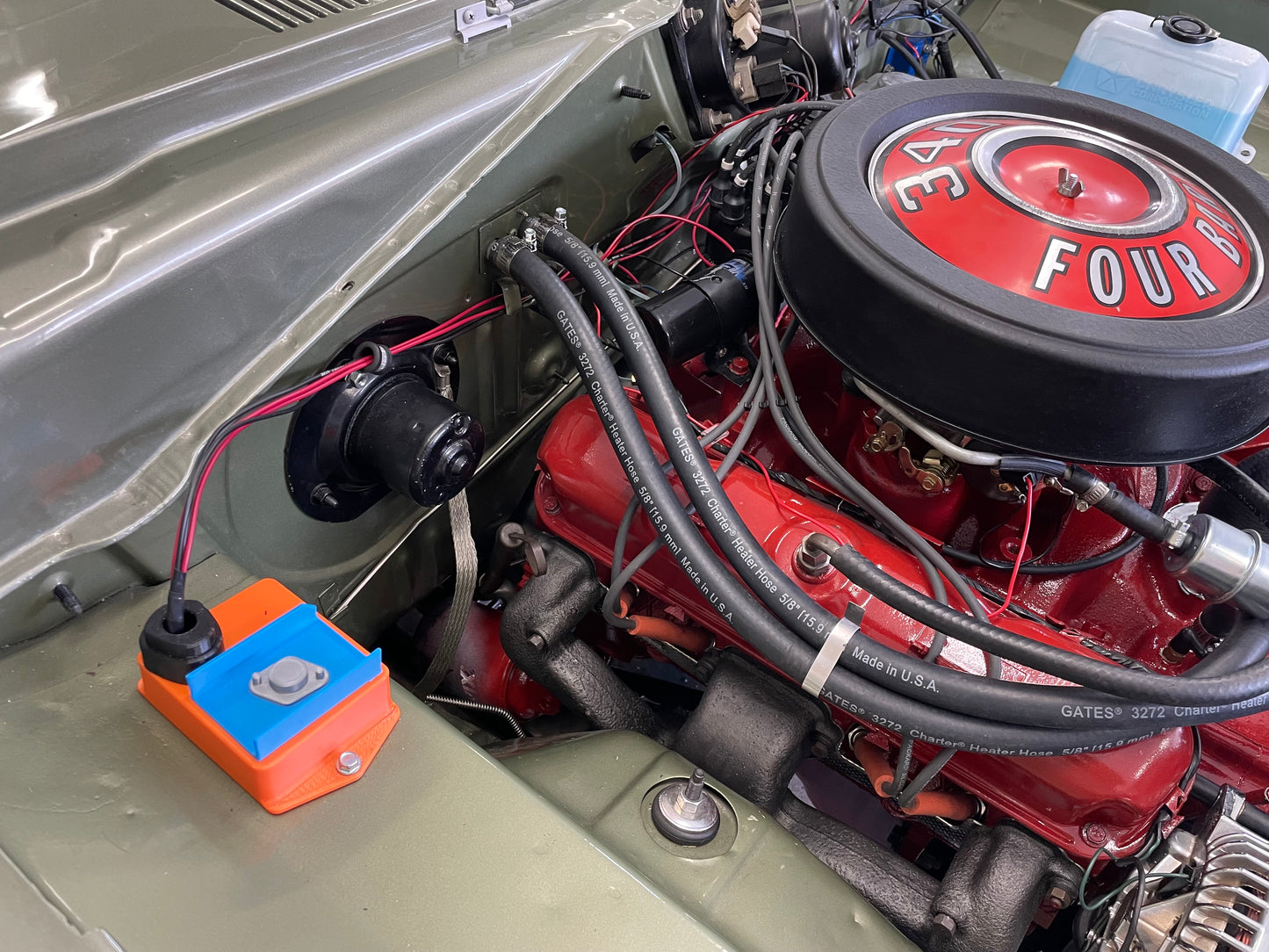

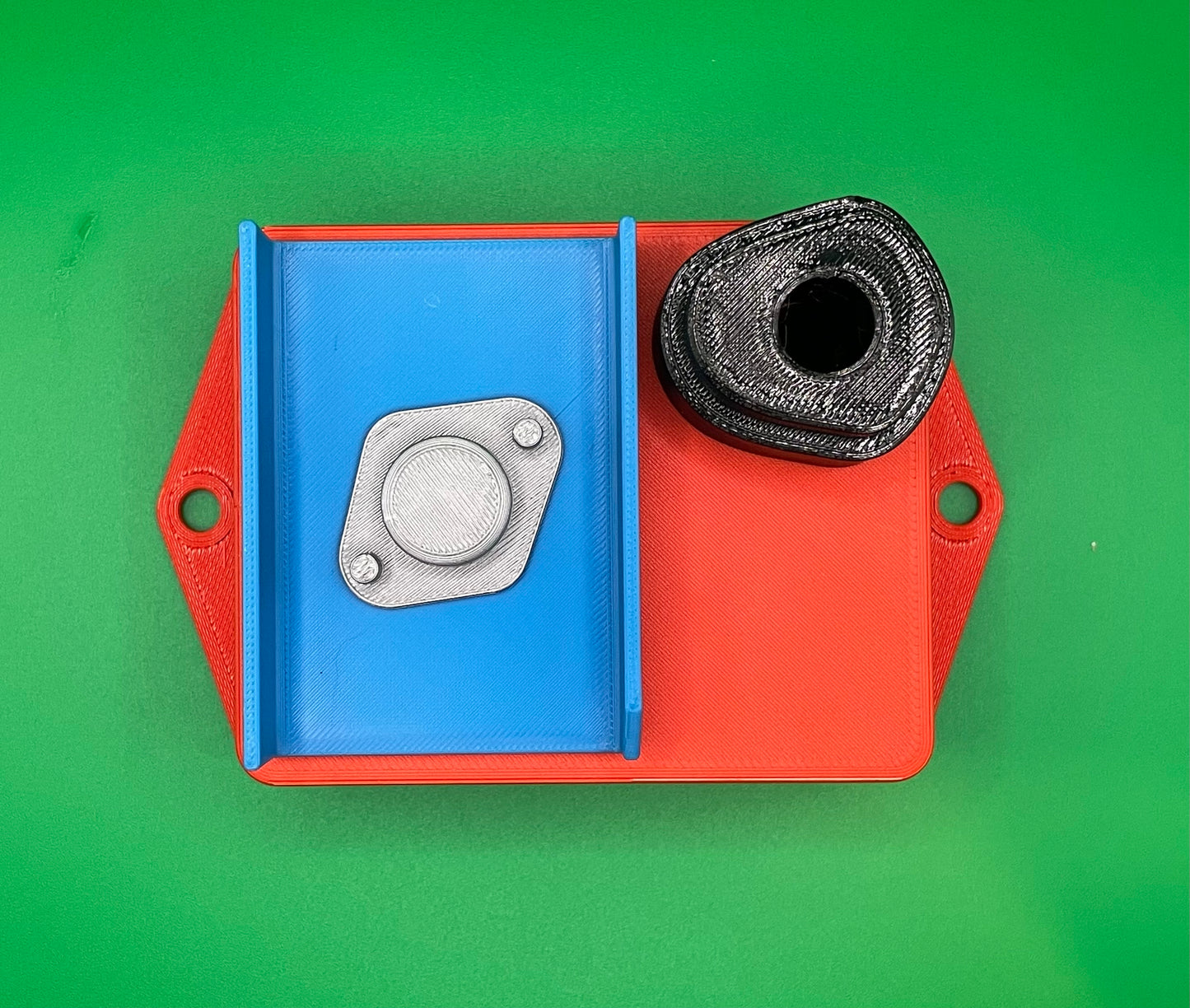

This box bolts directly in place of the factory Chrysler ignition box, hiding a GM 4 pin ignition module inside along with a 3/16" thick 5052 aluminum heat sink. You can then purchase a module and low ohm canister coil and do away with your factory ballast resistor! Included in this kit will also be a wiring diagram plus links to my YouTube instructional videos.
You WILL NEED to purchase or source a MODULE AND LOW OHM COIL.

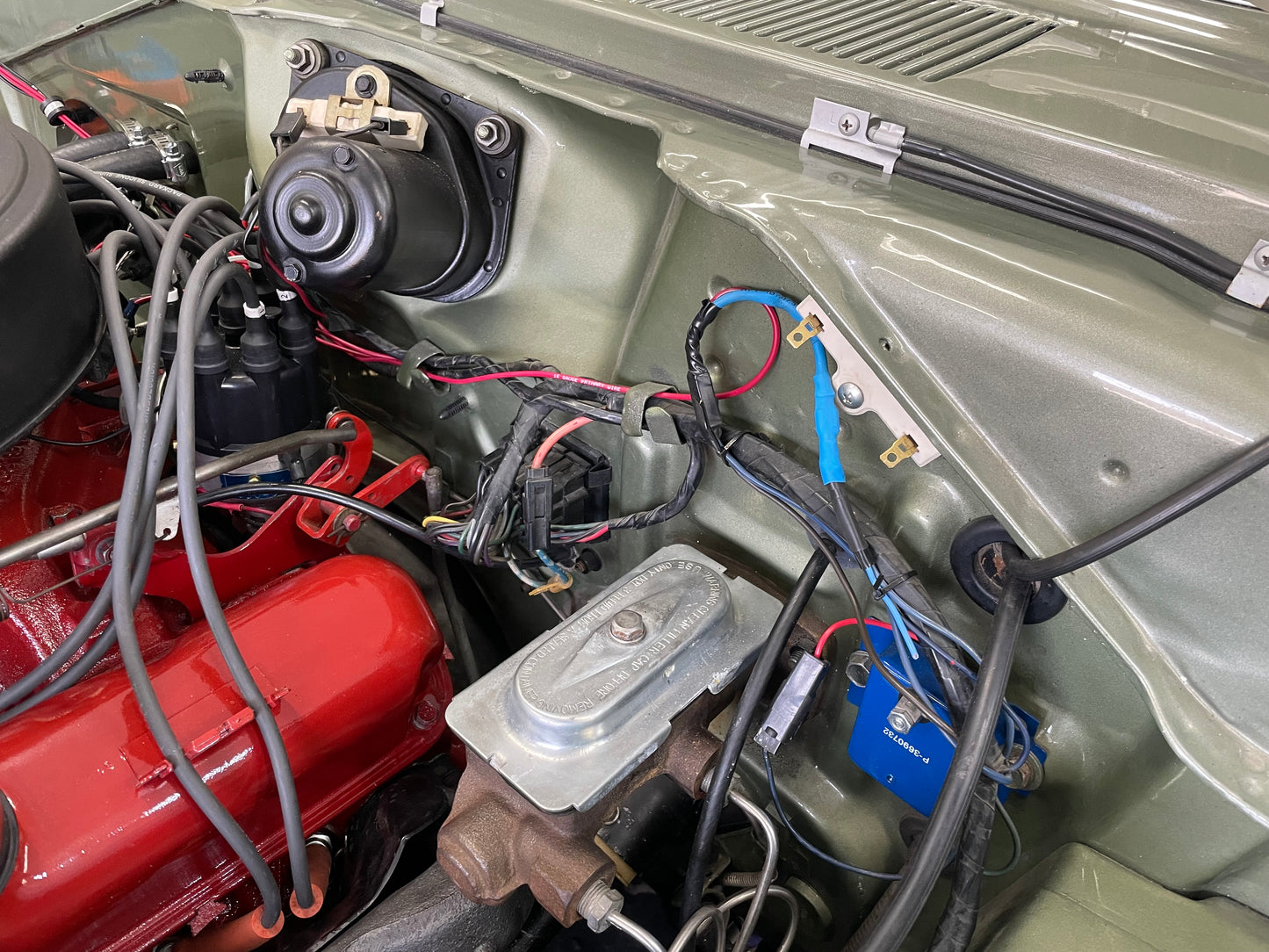

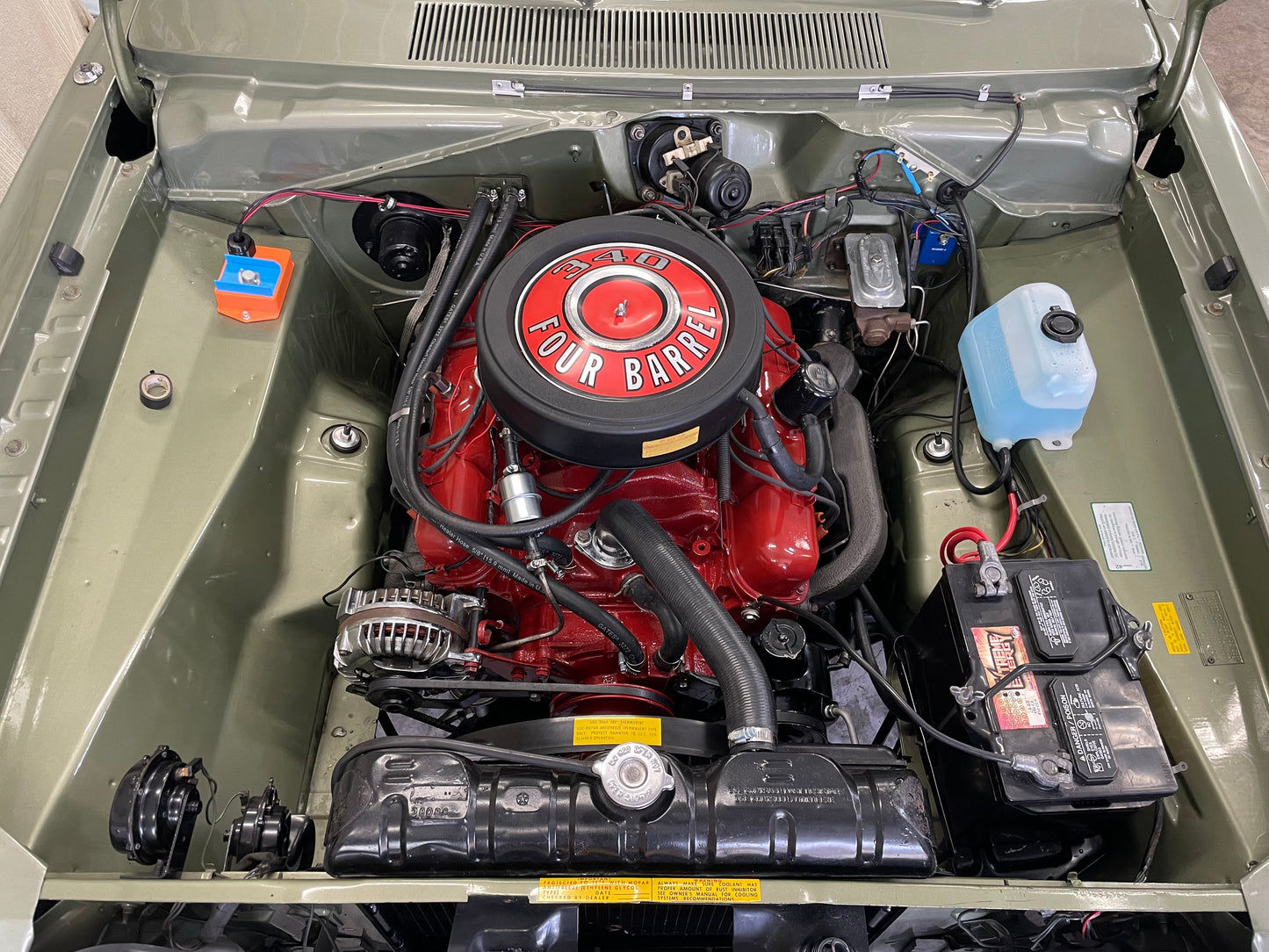

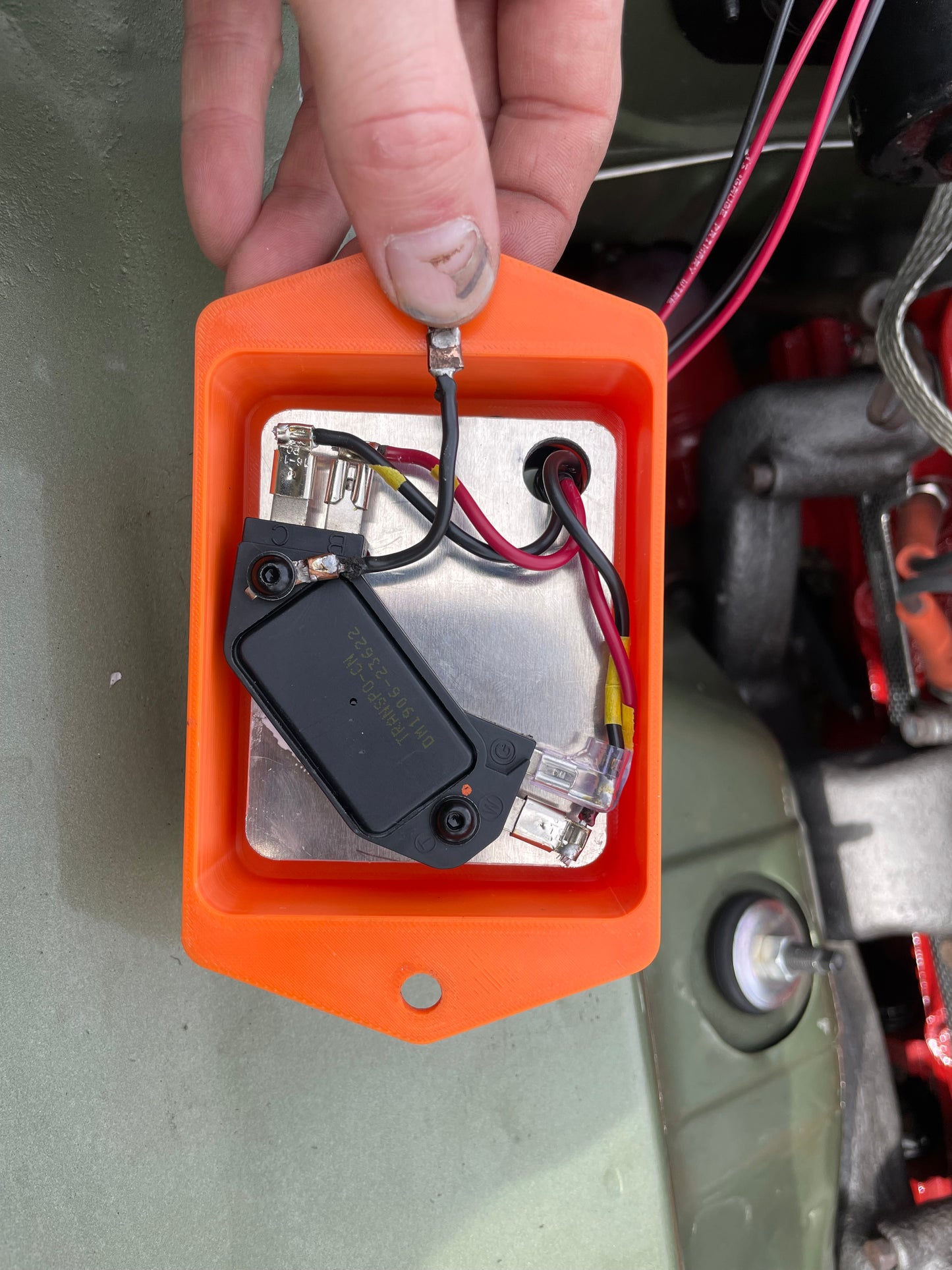

THE PICTURED COMPLETE SETUP WITH MODULE ARE FOR REFERANCE ONLY!!!!!
Here are some part numbers and links we suggest for modules and coil. Click on the links to order your module and coil at the same time!
